There's nothing quite like the rush of a turbocharged engine—that surge of power as boost kicks in transforms your driving experience entirely. But here's the reality: installing an aftermarket turbocharger isn't just about bolting on a new component and calling it a day. Without proper preparation, you're looking at costly mistakes, potential engine damage, or a failed installation that leaves your project car sitting in the garage for months.
Whether you're a seasoned DIY mechanic or tackling your first forced induction build, this aftermarket turbocharger installation checklist ensures you have everything you need before turning a single wrench. We'll cover the supporting modifications that make or break turbo reliability, the essential tools you can't work without, parts compatibility verification, and the common roadblocks that catch even experienced builders off guard.
Key Takeaways
- Supporting modifications (fuel system, engine management, cooling) are just as critical as the turbo itself
- A healthy engine with good compression is mandatory—never install forced induction on a worn motor
- Proper oil feed and return lines prevent 90% of premature turbo failures
- Professional tuning isn't optional; it's essential for reliability and performance
- Budget $3,000-$10,000+ total including all supporting components and labor
- Parts compatibility verification prevents expensive fitment issues
- Break-in procedures and maintenance schedules protect your investment
Understanding What Makes Turbo Installation Different
Installing a turbocharger fundamentally changes how your engine breathes, fuels itself, and manages heat. Unlike bolt-on modifications, forced induction creates a domino effect—each system needs upgrading to handle increased pressure, temperature, and power output.
The good news? With proper planning and the right aftermarket auto parts, turbo installations have never been more accessible for home builders. The challenge lies in understanding that the turbocharger itself is just one piece of a complex puzzle.
Most failed installations share common threads: inadequate fuel delivery, missing engine management upgrades, or overlooking critical supporting modifications. These aren't just performance compromises—they're reliability killers that can destroy your engine in minutes.
Essential Supporting Modifications You Can't Skip
Fuel System Upgrades: Feeding the Beast
Your stock fuel system was designed for naturally aspirated operation, which means it's completely inadequate for turbocharged power levels. Running lean under boost is the fastest way to melt pistons, and it happens surprisingly fast.
What you need: Upgraded fuel injectors sized for your horsepower goals (add 30% capacity beyond your target), a high-flow fuel pump capable of supporting increased demand, and an adjustable fuel pressure regulator. For most street applications targeting 300-400 horsepower, plan on 550-750cc injectors and a pump flowing at least 255 liters per hour.
Don't forget fuel lines—restrictive stock lines create pressure drops that starve your engine exactly when it needs fuel most. Upgraded -6 AN or larger lines from tank to rail prevent this bottleneck.
Engine Management: The Brain Behind the Boost
Here's where many budget builds fail: attempting to run a turbo on stock engine management. Modern engines use closed-loop fuel and timing control that simply cannot compensate for forced induction without reprogramming.
You have three options: a piggyback controller (least expensive, most limited), a flash tune for your stock ECU (mid-range cost, good for mild boost), or a standalone engine management system (highest cost, unlimited tuning potential). For most street builds, a quality flash tune combined with a boost controller provides the sweet spot of performance and affordability.
Essential sensors include a wideband oxygen sensor for accurate air-fuel ratio monitoring, an upgraded MAP sensor that reads boost pressure (stock sensors max out around atmospheric pressure), and a boost controller—either electronic for precise control or manual for simplicity.
Critical reminder: Never, ever run boost without proper tuning. The few hundred dollars you save will cost thousands in engine damage.
Cooling System Enhancements
Turbocharged engines generate significantly more heat than their naturally aspirated counterparts. That heat comes from three sources: compressed intake air, increased combustion temperatures, and the turbo itself radiating exhaust heat throughout the engine bay.
An intercooler is non-negotiable—it cools compressed air before entering the engine, increasing density and preventing detonation. For most applications, an air-to-air front-mount intercooler provides the best balance of efficiency and cost. Size it appropriately: too small causes heat soak, too large creates lag.
Don't overlook your radiator and oil cooling. Upgraded radiators with increased core thickness handle the additional heat load, while an oil cooler protects your turbo's bearings by maintaining proper oil temperatures. Turbos spin up to 150,000 RPM—they need consistent, cool oil to survive.
Exhaust System Modifications
Your exhaust system needs complete rethinking for turbo applications. The stock exhaust manifold gets replaced with either a turbo-specific manifold or a tubular header designed for your turbo's flange pattern (T3, T4, or V-band are most common).
Downstream, you'll need a properly-sized downpipe—this is the exhaust pipe connecting the turbo to your cat-back exhaust. Size matters here: too small creates backpressure that kills power and efficiency, too large can hurt spool time on smaller turbos. For most street applications, 3-inch downpipes hit the sweet spot.
Your cat-back exhaust should flow freely with minimal bends and restrictions. Backpressure is not your friend on turbocharged engines.
The Complete Turbocharger Installation Tool List
Having the right tools prevents frustration, injuries, and expensive mistakes. You'll need both general automotive tools and several specialized pieces of equipment.
Essential specialized tools:
- Torque wrench set (critical for proper turbo mounting and exhaust manifold installation)
- TIG welder or MIG welder for custom exhaust and intercooler piping
- Angle grinder for fabrication work
- Drill press and tap set for oil return fittings
- Pipe bender if running custom intercooler piping
General automotive tools:
- Complete socket set (metric and SAE, both standard and deep)
- Quality jack and jack stands rated for your vehicle's weight
- Impact gun (pneumatic or electric) for stubborn exhaust bolts
- Various wrenches, pliers, and screwdrivers
- Digital calipers for precise measurements
Safety equipment matters: Safety glasses protect from metal shavings during fabrication, heat-resistant gloves prevent burns when working with exhaust components, and a fire extinguisher should always be within reach when working with fuel systems.
Don't forget proper lighting and ventilation if you're welding or working with chemicals in a closed garage.
Verifying Parts Compatibility Before You Buy
Nothing derails a turbo installation faster than discovering your brand-new turbocharger doesn't fit your engine bay. Parts compatibility verification should happen before you spend a single dollar.

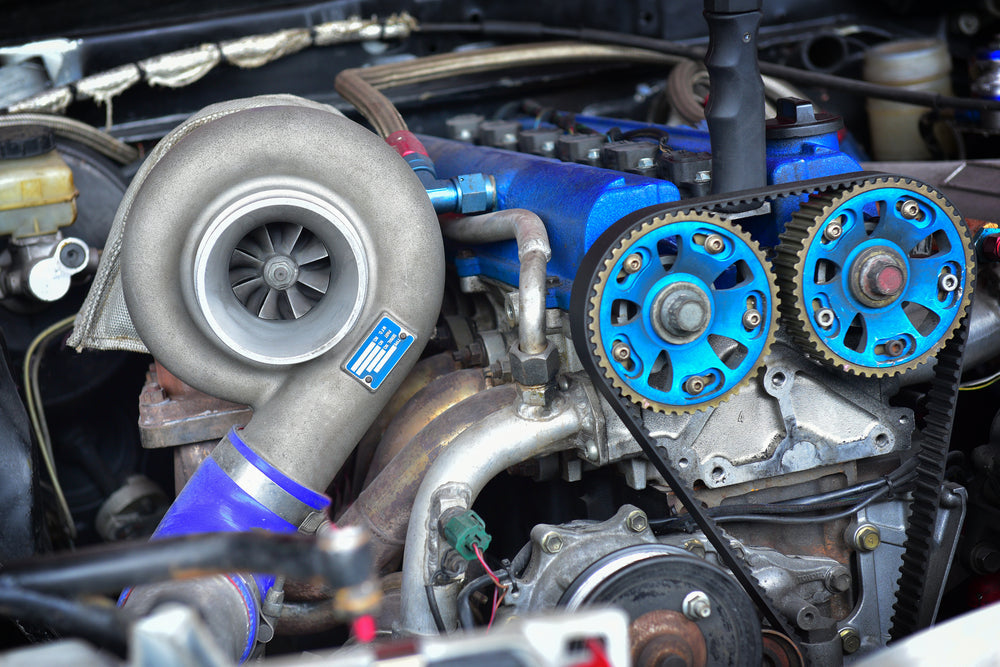

Matching Turbo Size to Performance Goals
Turbocharger sizing isn't just about "bigger is better"—it's about matching the compressor and turbine to your engine displacement, RPM range, and horsepower targets. A turbo that's too large creates excessive lag and poor street manners. Too small and you'll hit the efficiency limits quickly, generating heat instead of power.
Compressor maps show the efficiency islands for different pressure ratios and airflow rates. Your combination should live in the center of these islands for maximum efficiency. A/R ratio (area over radius) determines how quickly exhaust gases spool the turbine—smaller A/R ratios spool faster but limit top-end power.
For most street applications, 0.63 A/R turbine housings balance spool and power, while compressor sizing should target 60-70% efficiency at your desired horsepower level.
Critical Parts Checklist
Don't start your installation until you've verified you have:
Gaskets and seals: Turbo inlet/outlet gaskets, exhaust manifold gaskets (copper or multi-layer steel), oil feed and return line gaskets, and quality silicone couplers for all intercooler connections.
Hardware: High-temperature turbo mounting studs and nuts (regular hardware will loosen from heat cycling), exhaust manifold studs, stainless steel hose clamps, V-band clamps if your turbo uses them.
Fluids and compounds: Break-in oil for initial priming, high-temperature anti-seize, thread locker for critical fasteners, and exhaust-rated RTV silicone.
Piping and connections: Complete intercooler piping kit, silicone couplers in various sizes, blow-off valve or bypass valve, vacuum lines, and all necessary fittings.
Oil system components: Properly sized oil feed line (usually -4 AN), oil return line (minimum -10 AN for gravity feeding), inline oil filter for the feed line, and all necessary adapters for tapping into your engine's oil system.
Pre-Installation Vehicle Assessment
Before bolting on forced induction, your engine needs a clean bill of health. Installing a turbo on a worn engine is throwing money into a fire.
Engine Health Check
Run a compression test across all cylinders—you want consistent readings within 10% of each other and no cylinder below 140 PSI (check your engine's specs). A leak-down test goes deeper, revealing ring wear, valve sealing, or head gasket issues that compression tests might miss.
Check for excessive oil consumption if your engine burns more than a quart every 1,000 miles; address that before adding boost. Turbocharged engines are harder on oil, and existing consumption problems multiply exponentially under pressure.
Timing components deserve attention, too. If your timing belt or chain is approaching service intervals, replace it now. The added stress of forced induction will find any weakness.
Common Installation Roadblocks and Solutions
Even with perfect planning, turbo installations present challenges. Here are the issues that catch most builders:
Clearance problems are the most common. Hoods, steering components, AC lines, and transmission coolers all conspire to occupy the same space you need for your turbo and piping. Spend time doing mock-ups before welding anything permanent. Sometimes, a slight angle change on the turbo or relocating a bracket solves everything.
Oil feed and return routing causes endless headaches. The feed line needs a pressurized oil source—either tap your oil gallery or use a sandwich plate adapter between the oil filter and block. The return line must gravity-feed back to the pan, requiring a downward slope without kinks or tight bends. Many installations require welding a bung into the oil pan for proper return flow.
Intercooler piping design looks straightforward on paper, but reality brings complexity. Every bend and transition creates a pressure drop—minimize both. Throttle body adapters frequently require custom fabrication when factory piping doesn't match aftermarket intercooler sizing.
Breaking In Your New Turbo Installation
Your first start-up is critical. Before cranking the engine, prime the oil system by disconnecting the ignition and cranking the motor until you see oil pressure register. This ensures the turbo receives lubrication immediately when the engine fires.
Warm up your engine at idle for several minutes before driving. Turbos need oil flow to cool the bearings—shutting down a hot turbo without an idle period can cause coking and premature failure.
During the first 500 miles, avoid full boost. Gradually increase boost levels as the turbo breaks in and you monitor for leaks, unusual noises, or performance issues. Check all connections regularly during this period—heat cycling will reveal any loose clamps or fittings.
The Tuning Reality: Why You Can't Skip This Step
Professional dyno tuning isn't optional—it's mandatory for safe, reliable operation. A skilled tuner adjusts fuel delivery, ignition timing, and boost levels throughout the RPM range, keeping your engine safe while maximizing performance.
Target air-fuel ratios under boost typically range from 11.5:1 to 12.5:1 (richer than stock) to prevent detonation. Timing must be retarded slightly under boost—running too much advance with increased cylinder pressure will destroy your engine.
Budget $500-$1,500 for professional tuning. It's the best money you'll spend on your entire build.
Maintenance and Longevity
Turbocharged engines demand more frequent maintenance than naturally aspirated motors. Oil change intervals should be shortened to 3,000-5,000 miles using quality synthetic oil rated for turbo applications.
Regularly inspect your boost system for leaks—even small leaks hurt performance and drivability. Check wastegate operation, inspect turbo bearings for play (there should be minimal shaft movement), and monitor your boost gauge for consistency.
Proper cool-down procedures extend turbo life dramatically. After hard driving, idle for 30-60 seconds before shutdown, allowing oil to cool the bearings and prevent coking.
Legal Considerations and Insurance
Emissions compliance matters in most states. CARB-certified turbo kits satisfy California's strict regulations, while other states follow various standards. Maintaining catalytic converters and OBD-II functionality helps pass inspections.
Document your installation professionally if you want any hope of warranty coverage on related components. The Magnuson-Moss Warranty Act protects consumers from blanket modification-based warranty denials, but manufacturers can deny claims if your modification caused the failure.
Notify your insurance company of major modifications. Failure to disclose can result in claim denials when you need coverage most.
Taking the Next Step in Your Turbo Build
A successful turbocharger installation starts long before you turn your first wrench. This aftermarket turbocharger installation checklist covers the supporting modifications, tools, parts verification, and planning that separate reliable builds from expensive failures.
Remember: the turbo itself is just one component in a comprehensive system. Your fuel system, engine management, cooling capacity, and exhaust all need upgrading to support forced induction reliably. Cut corners on supporting modifications and you're gambling with your engine's life.
